RC modely » servo

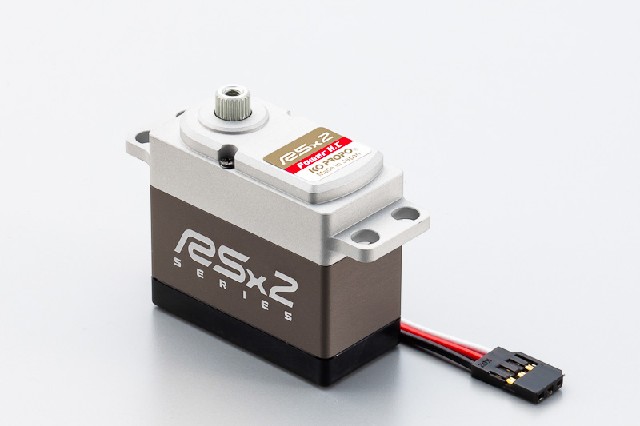

Ko Propo RSx2 PowerHC Servo

Novinka
Ko Propo RSx2 PowerHC Servo
Velmi kvalitní profesionální špičkové servo, Futaba konektor, "tisícihran" 23 zubů. Hliníkový obal, hliníkové převody.
Popularita Popularita
Výrobce
Dostupnost Na objednávku
Záruka 24 měs.
Kód položky KO30107
Cena bez DPH 3 214,88 CZK
DPH 21 %
Cena s DPH 3 890,00 CZK
  • Podrobný popis
  • Diskusní fórum (0)
Features

Current servos have the appearance of high speed and high power from the response of 2.4GHz and the power from Li-po batteries respectively. This creates a huge demand upon the servo. The RSx is the racing servo with the durability and operability to employ this high-spec demand.

1: Case

The middle case is machined from one piece of aluminum that incorporates the gear pins and motor being held properly in place. The top case rigidity has been improved with the addition of two screws in the middle to prevent flex and keep the gears properly aligned. The upper Hard Case (H.C) is also machined from aluminum. H.C is the distinction of durability for categories that demand high stress.

2: Motor

A servo motor is a very important part of a servo. The specification of a servo is up to the motor being used. We have developed a new motor suitable for the new R/C standard with numerous performance and stress tests.

3: Gear

The gears are made with a special Japanese aluminum. This gear is 45% lighter than brass and has the same hardness as steel. The #Light Weight# design provides a clean response for driving and reduces the burden on the servo motor. The thorough quality control of the manufactured gears ensures the least amount of backlash possible for smooth action. And Power and Pawer HC use Special Stainless Gear. It is very strong and useful for off load category.

Technical Data:

Speed: 0.11s@60°(7.4V)/0.13s@60°(6.0V)
Torque: 31,6kg-cm(7.4V)/26,3kg-cm(6.0V)
Size: 41 x 37.5 x 20 mm
Weight: 70.5 g
